One sensor board to suit PDMedical, BOC and ASCON gas alarm system

The sensor boards are for use with medical gas pressure systems connecting to any alarm switch with voltage free contacts. Our sensor boards are available for SUCO and Generic pressure switches.

Both sensor boards provide jumpers for selecting the alarm panel manufacturer to which the sensor board will be attached. (P=PDMedical, B=BOC, A= ASCON).

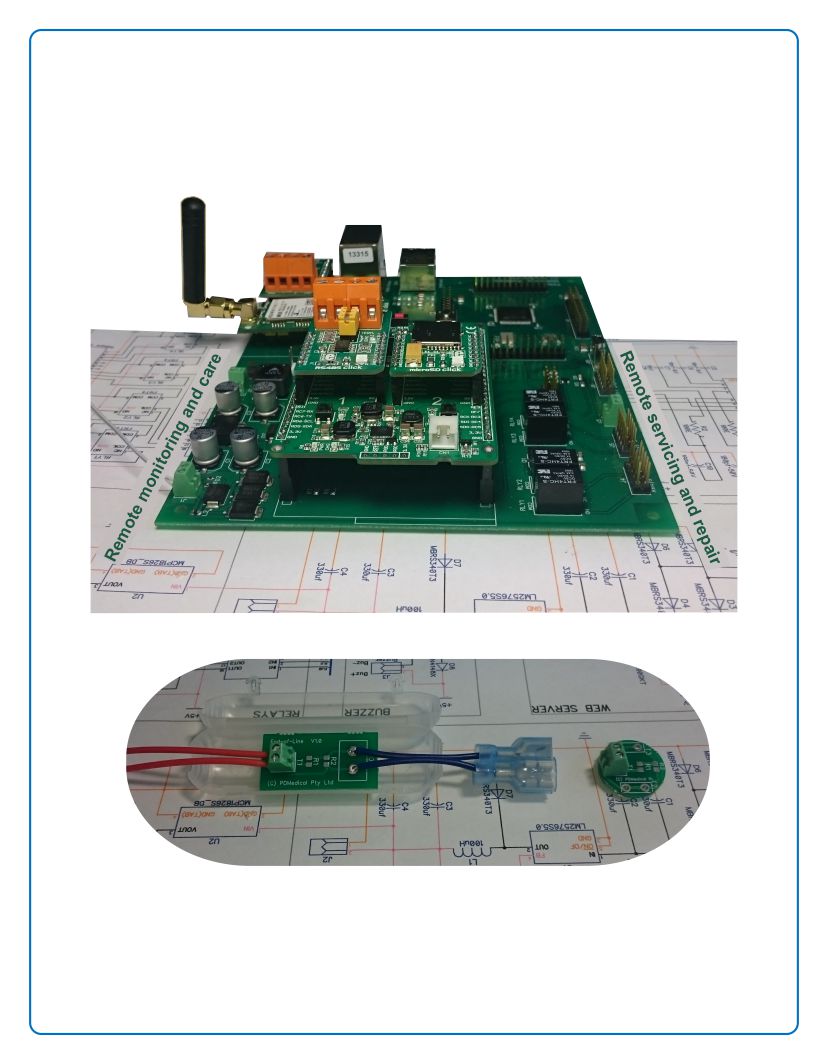

Both sensor boards are electrically equivalent. They differ only in form. EOL-C fits directly onto the SUCO switch via spade terminals and the rubber boots fits neatly over circular board.

EOL-GP: is generic model for non SUCO switches. It provides screw terminals for maximum flexibility. This board is supplied as bare board with suitable mounting holes, standoffs and screws or with a small flange mounted black plastic enclosure (70mm x 36mm).

---
